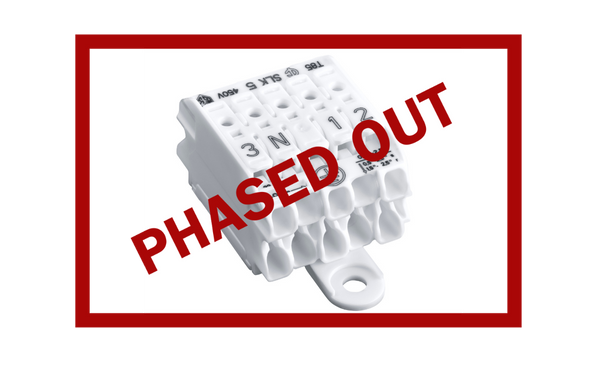

SLK 5

Miniaturised screwless power supply connectors for light fittings

All advantages at a glance SLK 5

  • Extremely small dimensions: 5 poles with 2 × 2.5 mm² terminals fit into lowprofile cross-sectional area 21 × 30 mm
  • Large clamping range: 0.5 to 2.5 mm² for rigid and flexible wires
  • Screwless connector
  • Release pin
  • Strain relief

Approvals

Technical data
Box type
325 x 180 x 280 mm
Nominal voltage
450 V
Nominal current
24 A
Max. ambient temperature
T85
Wire skinning length
9 + 1 mm
Clamping range
Upper
0.5 - 2.5 mm²
Lower
0.5 - 2.5 mm² solid
1.5 - 2.5 mm² rigid
Art.Nr. Material description Length Width Height
88167554 SLK 5/5 +E-PIEC L-N-ERDE-DA+-DA- 35.0 mm 27.0 mm 24.0 mm
88167480 SLK 5/5OF +E-SCHR 3-N-ERDE-1-2 57.2 mm 27.0 mm 19.0 mm
88167479 SLK 5/5 +E-SCHR 3-N-ERDE-1-2 47.0 mm 27.0 mm 24.0 mm
88167478 SLK 5/5 +E-PIEC 3-N-ERDE-1-2 35.0 mm 27.0 mm 24.0 mm
88167481 SLK 5/5OF 3-N-ERDE-1-2 45.4 mm 27.0 mm 19.0 mm
88167704 SLK 5/5 +E-SCHR L-N-ERDE-DA+-DA- 47.0 mm 27.0 mm 24.0 mm
88167555 SLK 5/5 DA-DA-L'-N-L 35.0 mm 27.0 mm 24.0 mm
88167818 SLK 5/5 L-N-ERDE-DA+-DA- 35.0 mm 27.0 mm 24.0 mm
88167817 SLK 5/5 3-N-ERDE-1-2 35.0 mm 27.0 mm 24.0 mm
88167686 SLK 5/5OF +E-SCHR L-N-ERDE-DA+-DA- 57.2 mm 27.0 mm 19.0 mm
Datasheet_SLK_5
pdf
684 KB
