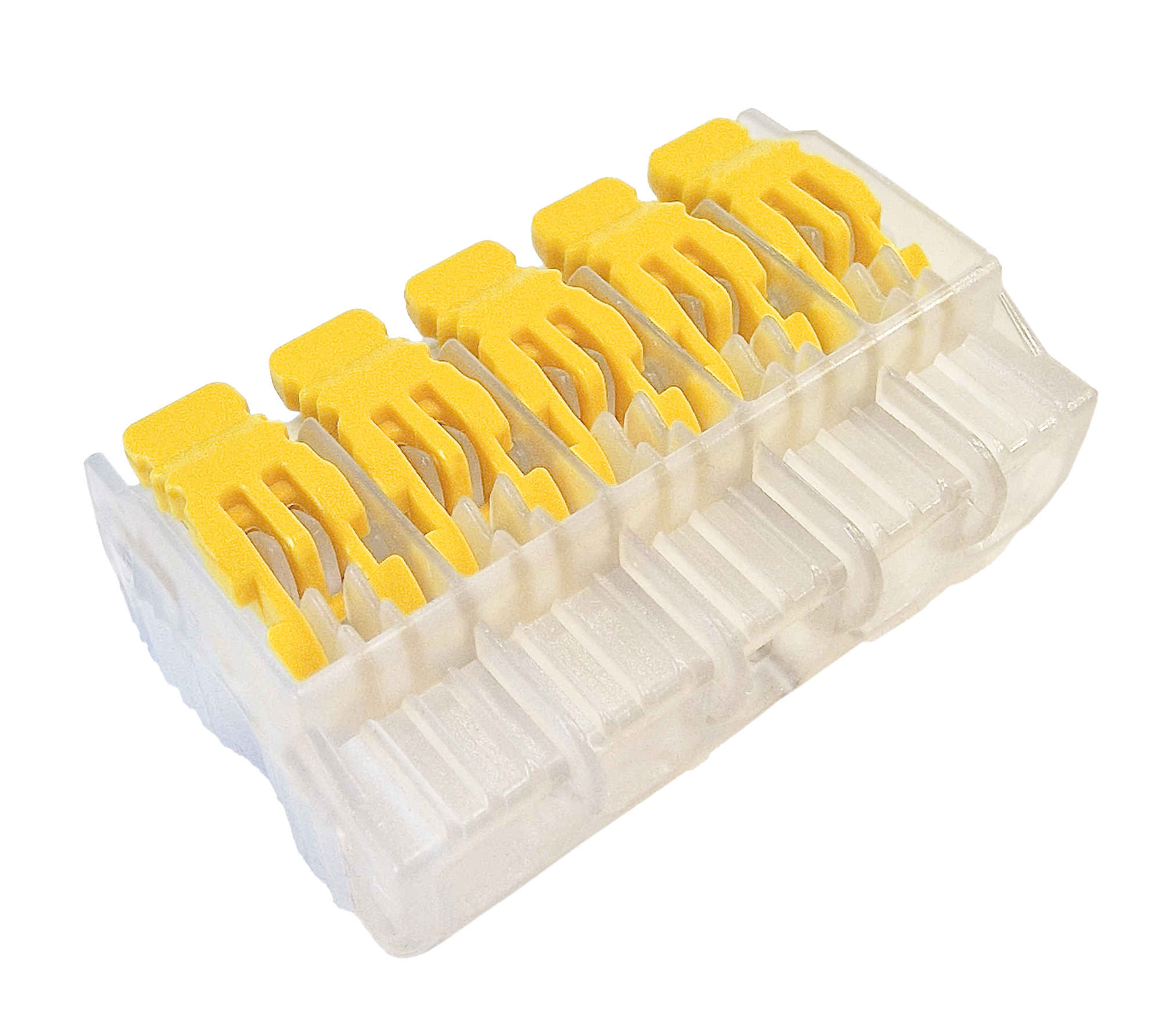

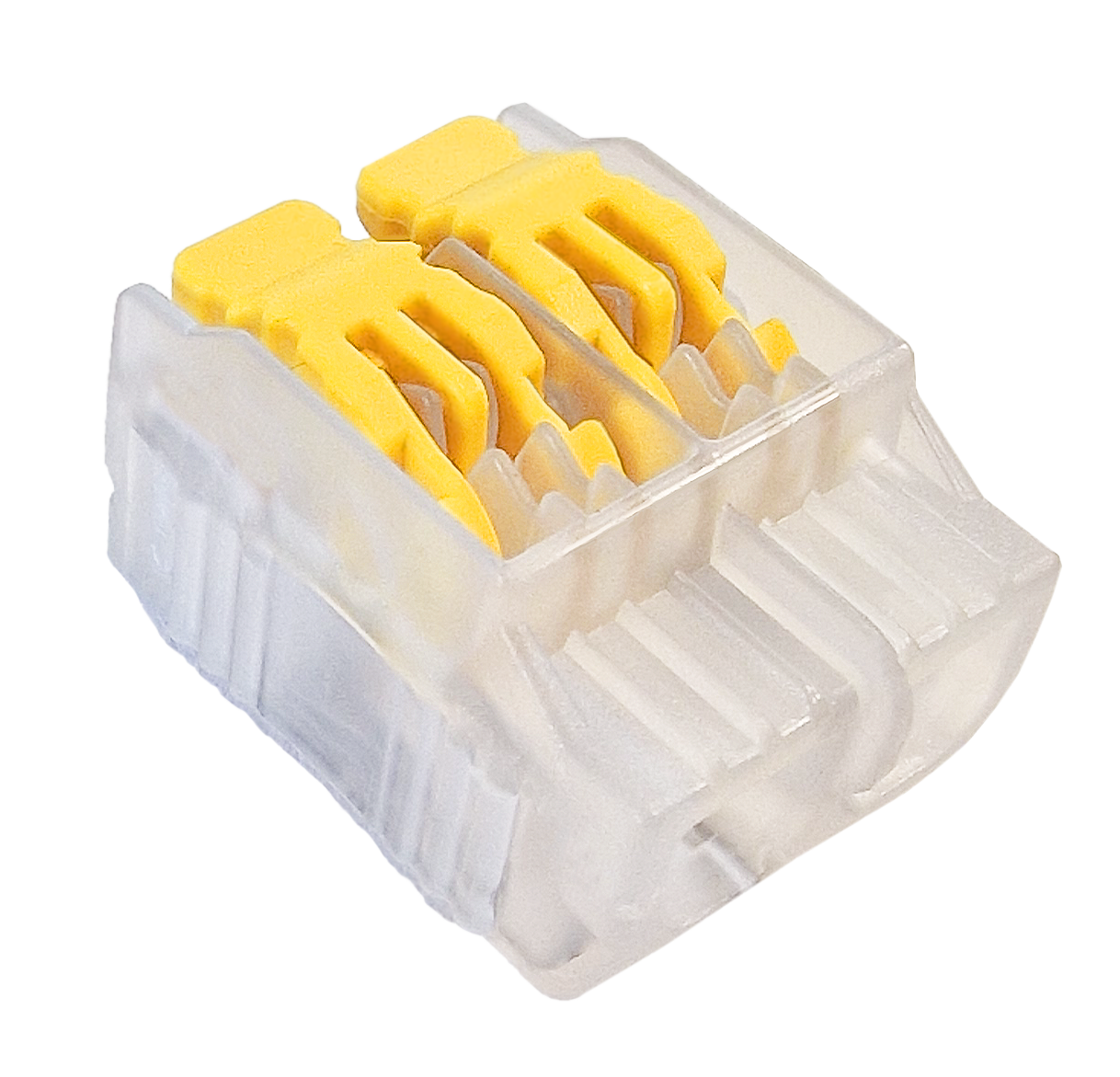

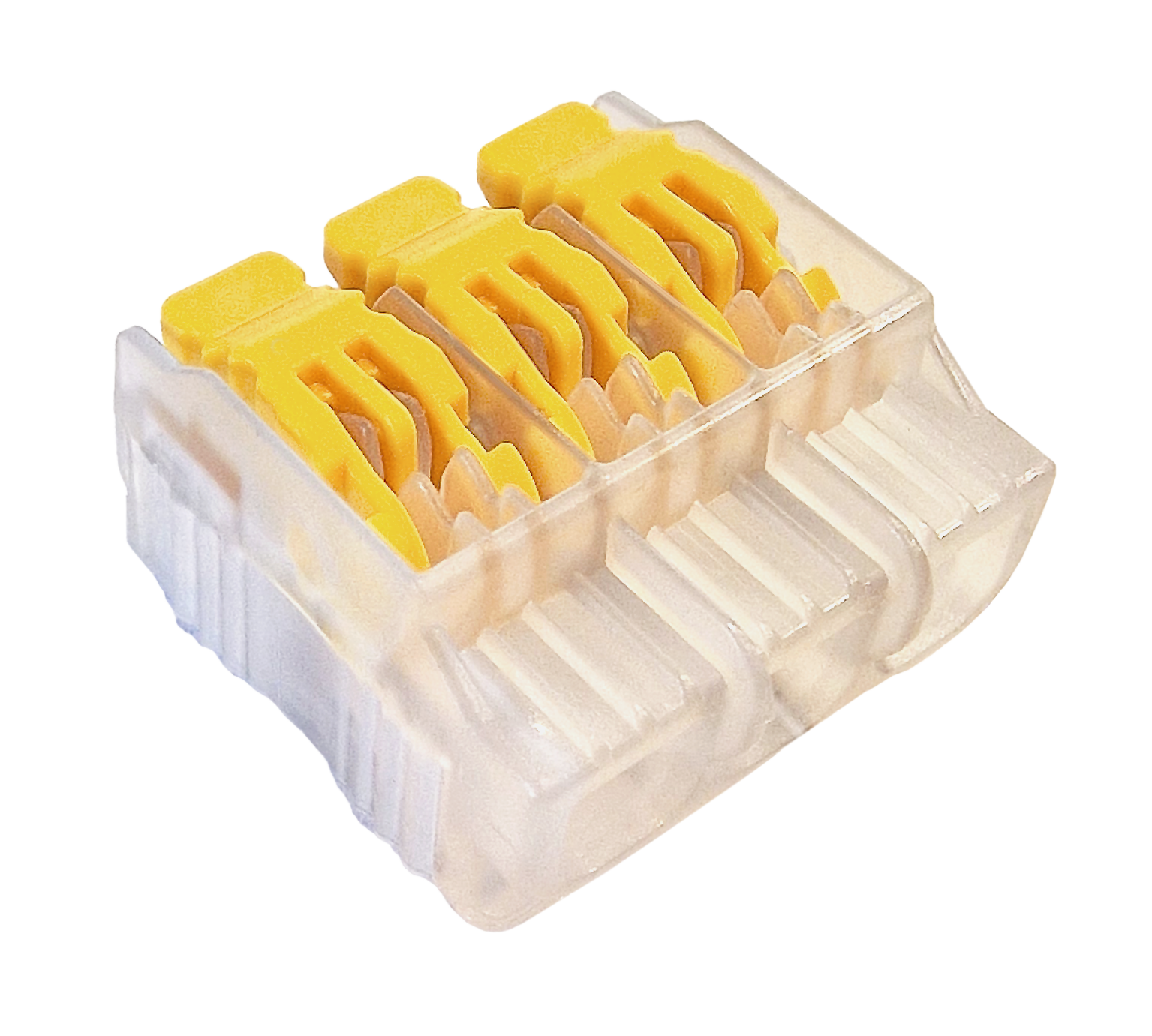

SLC
We exclusively offer the SLC to OEMs!
All advantages at a glance
- Clamping range: 0.14 mm² - 4 mm² for flexible wires
0.2 mm² - 4 mm² for solid & rigid stranded wires - Time saving: Solid wires can be inserted without opening the release lever.
- Increased safety during installation: Inspection window for checking the clamping point.
Smart lever design prevents accidental wire release. - Multiple wire cross-sections can be combined in one terminal.
- High pull-out forces
Approvals
Technical data
Box type
375 x 280 x 144 mm
Nominal voltage
450 V
Nominal current
32 A
Max.ambient temperature
T85
Wire stripping length
11 - 12 mm
Clamping range
0.14 mm² - 4 mm² (f) | 0.2 mm² - 4 mm² (s,r)
