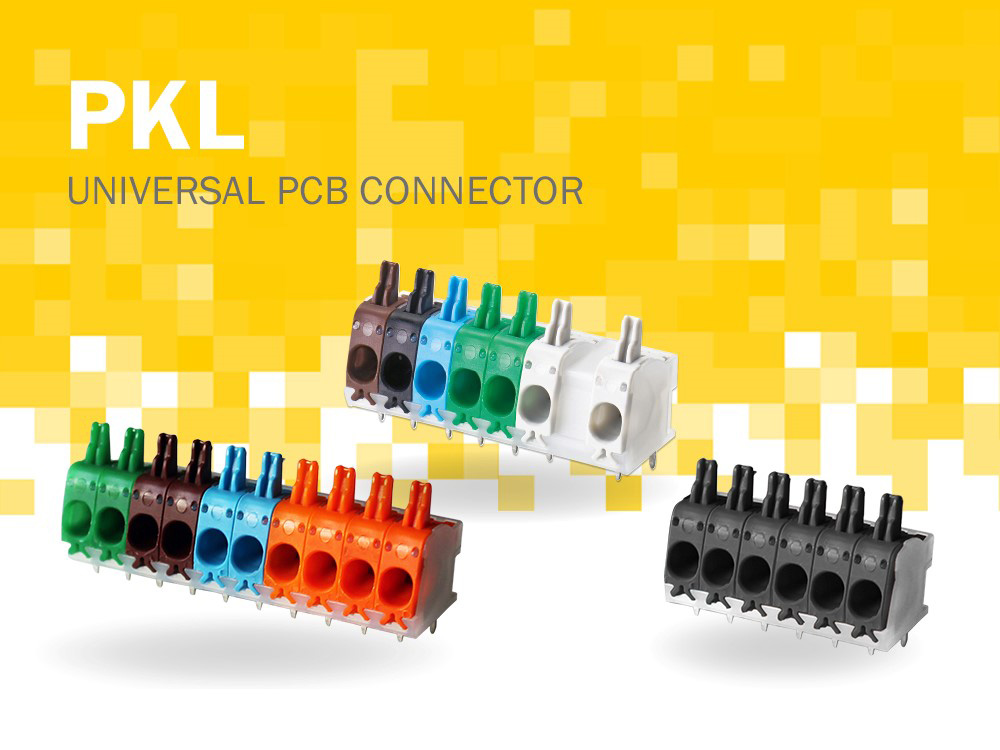

Our PCB connector PKL is a "Jack of all trades". It is universally applicable and available in various models and configurations for a minimum order quantity of 20,000 pieces:

  • Various colours: from black, blue, green and orange to red, white, gray and brown
  • Available with different single poles and also with two or three bridged terminals


Click here to inquire.

All advantages at a glance:

  • Nominal voltage 450 V
  • Nominal current 24 A
  • Clamping range 0.5 – 2.5 mm² (all types of wires)
  • Max. ambient temperature T85
  • ENEC approved
  • Long levers – no tools needed
  • Insertion of rigid wires without activating the levers
